A state-of-the-art single chassis audio/video component that outperforms most separates.

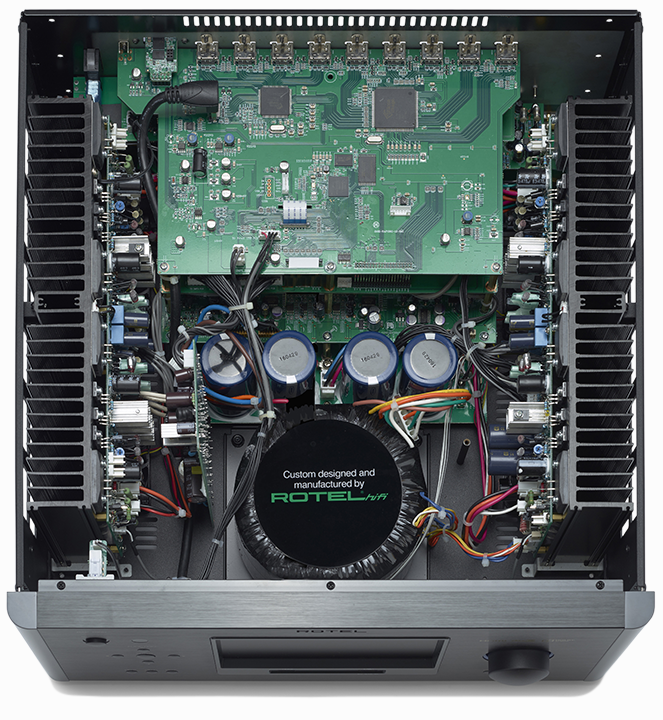

RAP-1580 is the ideal home theater solution for those who don’t have space for separate components, yet still desire uncompromising performance. It is an ultra-high-performance multichannel-integrated amplifier with surround processing that brings music and movies to life in a startlingly vivid way. Sporting the latest HDMI 2.0a hardware, DTS:X and Dolby Atmos 7.1.4 processing, its amplifier section is built upon a powerful class AB design with 7 x 100 watts per channel, all channels driven into 8 ohms, and anchored by a massive Rotel-made toroidal transformer.

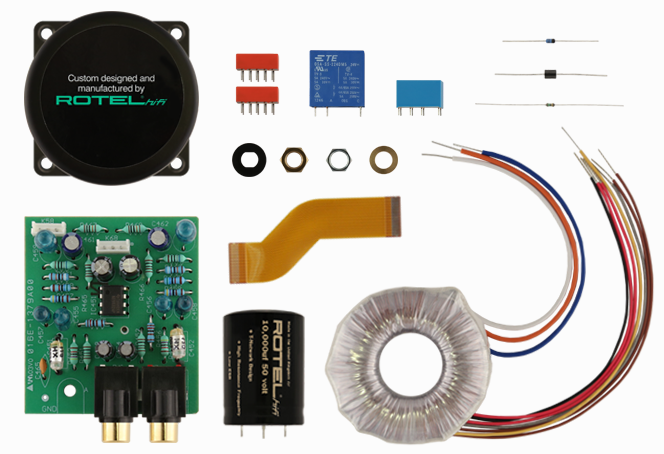

The RAP-1580 utilizes high performance Wolfson 24-bit/192kHz Digital-to-Analog Converters for all channels. These low noise, audiophile quality DACs are supported with premium-grade audio parts in circuits tuned by Rotel’s acoustic engineering team in the U.K.

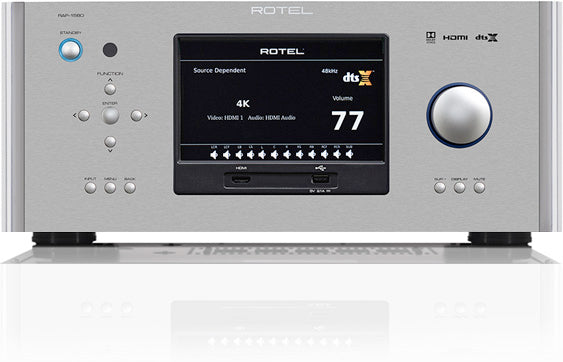

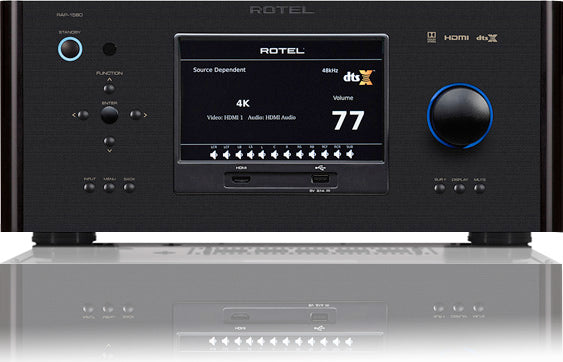

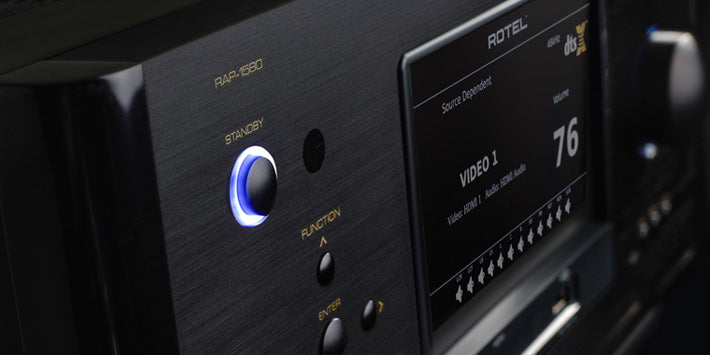

Inputs include 8 x HDMI video inputs with 2 x HDMI video outputs all supporting 4K video with 3 of these inputs and both outputs enabled with HDCP 2.2. There is a seven-inch TFT display on the front panel to provide easy adjustments to all audio and video parameters without the need to turn on the television or video projection system. This makes it ideal for set-ups when the equipment rack is located separately from the video display. A full suite of custom integration features is on-board.

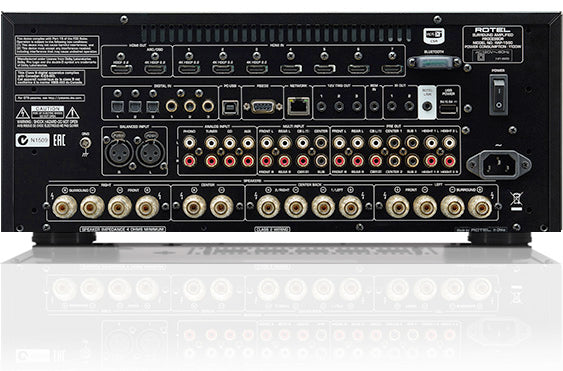

Other features include a front panel HDMI input with 4K video pass-through, front panel iPod USB input with 2.1A charging and integrated aptX enabled Bluetooth technology for higher fidelity. The RAP-1580 also includes a PC-USB input supporting 24-bit/192kHz audio, a quality MM phono stage input, CD input, XLR balanced input, Tuner input, AUX analog input and multichannel input.
Rotel's RAP-1580 is simple to operate, powerful, flexible and refined. It is a state-of-the-art single chassis audio/video component that outperforms most separates. In stereo or surround sound, this is a serious audio component.
-
FEATURES:
- 8 HDMI inputs capable of 4K/UHD video passthrough
- 3 HDMI inputs and both HDMI outputs support HDCP 2.2
- 10 channel Parametric EZ for optimizing room accoustics
- 7 x 100W class AB amplification
- 6 x Wolfson premium 24-bit/192kHz Digital to Analog Converters
- Supports Dolby Atmos 7.1.4 processing
- Decodes DTS:X
- PC-USB input supporting 24-bit 192kHz audio
- 8 HDMI inputs capable of 4K/UHD video passthrough
-
SPECIFICATIONS:
- DIMENSIONS (W × H × D):
- 431 × 192 × 470mm
- 17" × 7.55" × 18.5"
- FRONT PANEL HEIGHT: 4U / 177mm (7")
- POWER REQUIREMENTS: 120V, 60Hz
- POWER CONSUMPTION: 1100W
- STANDBY POWER CONSUMPTION: 0.5W
- NET WEIGHT: 22.8kg (50.27lbs.)
- BTU RATING: 2800 BTU/h
- CONTINUOUS POWER OUTPUT:
- 100W/Ch (All channels driven, 8Ω)
- 150W/Ch (2 channels driven, 8Ω)
- TOTAL HARMONIC DISTORTION (THD): (20Hz–20kHz) <0.03%
- FREQUENCY RESPONSE:
- Phono Input: 20Hz - 20kHz ±1dB
- Analog Bypass: 10Hz - 100kHz ±1dB
- Digital Inputs: 20Hz - 20kHz ±0.5dB
- S/N RATIO (IHF "A" Weighted):
- Analog Bypass: 100dB
- Digital Inputs: 96dB
- INTERMODULATION DISTORTION (60Hz:7kHz, 4:1): <0.03%
- DAMPING FACTOR (1kHz, 8 ohms): 230
- SPEAKER IMPEDANCE: 4Ω minimum
- INPUT SENSITIVITY:
- Line Level Inputs (RCA): 300mV
- Line Level Inputs (XLR): 600mV
- Phono Input (MM): 3.85mV
- INPUT IMPEDANCE:
- Line Level Inputs (RCA): 100kΩ
- Line Level Inputs (XLR): 100kΩ
- Phono Input (MM): 47kΩ
- PREAMP OUTPUT LEVEL: 1.2V
- DIGITAL AUDIO:
- LPCM (up to 192kHz, 24-bit)
- Dolby® Surround, Dolby®
- TrueHD, Dolby® Atmos,
- DTS-HD Master Audio, DTS:X
- HDMI INPUTS/OUTPUTS:
- 8 inputs with 3 supporting HDCP 2.2
- 2 outputs supporting HDCP 2.2
- Audio Return Channel
- VIDEO INPUT RESOLUTIONS:
- 480i/576i, 480p/576p, 720p,
- 1080i, 1080p, 1080p 24Hz,
- 3D, 4K, UHD
- VIDEO OUTPUT RESOLUTION:
- 480i/576i, 480p/576p, 720p
- 1080i, 1080p, 1080p 24Hz,
- 3D, 4K, UHD
- COLOR SPACE SUPPORT: sRGB, YCbCr 4:2:2, YCbCr 4:4:4
- DEEP COLOR SUPPORT: 24-bit, 30-bit, 36-bit
