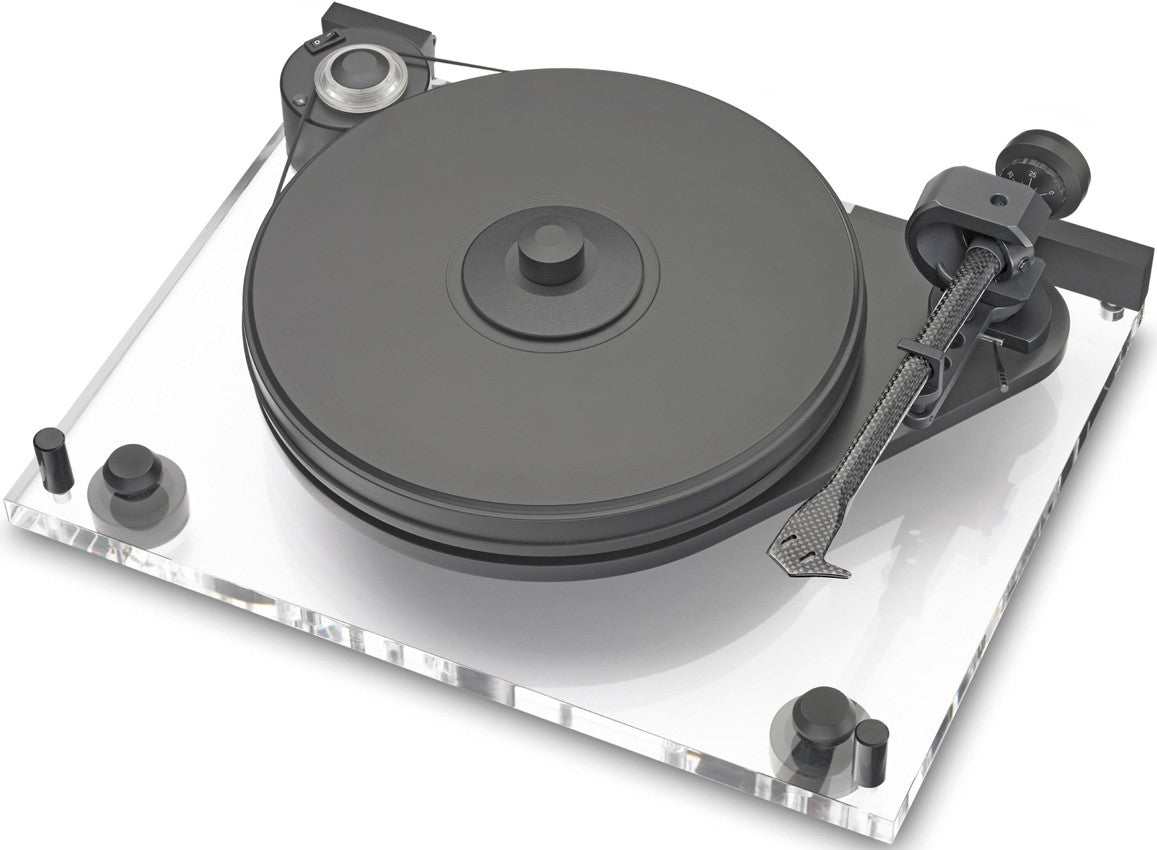

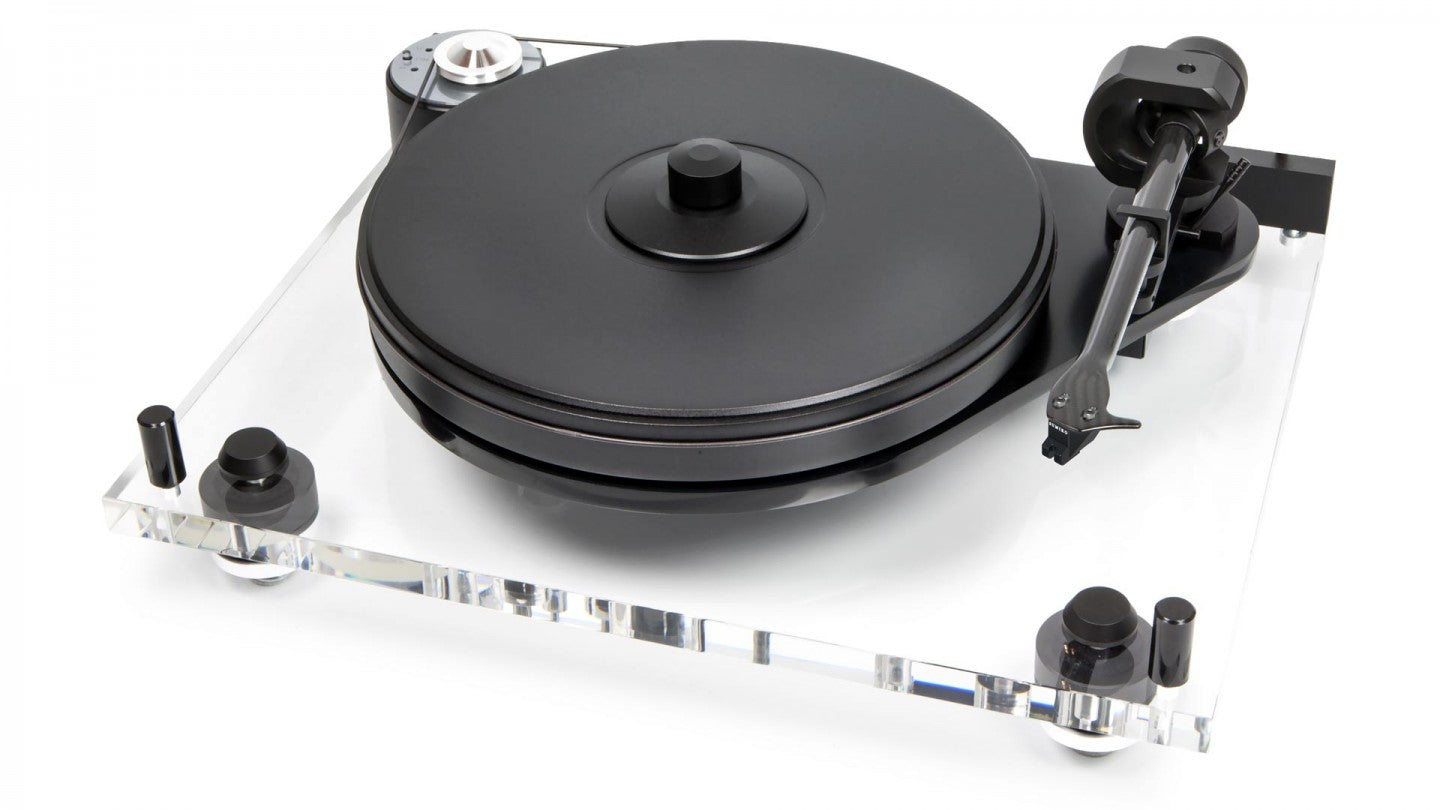

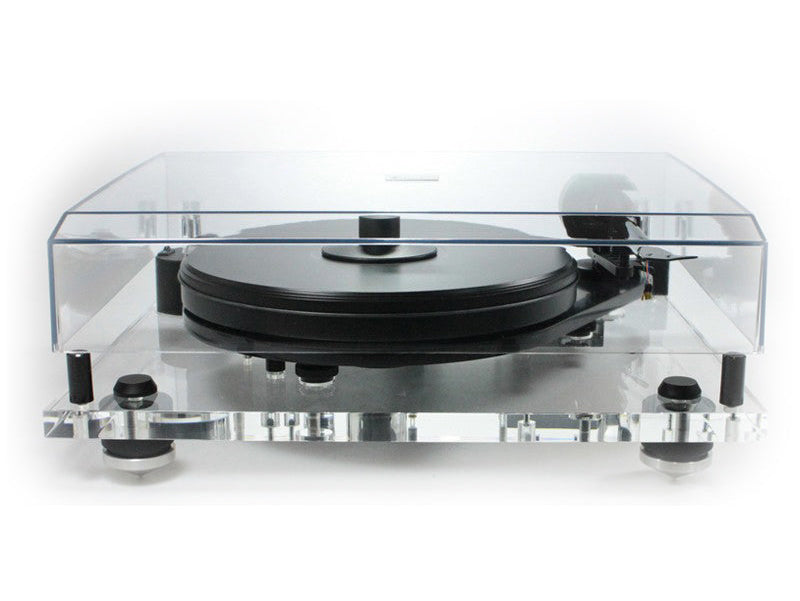

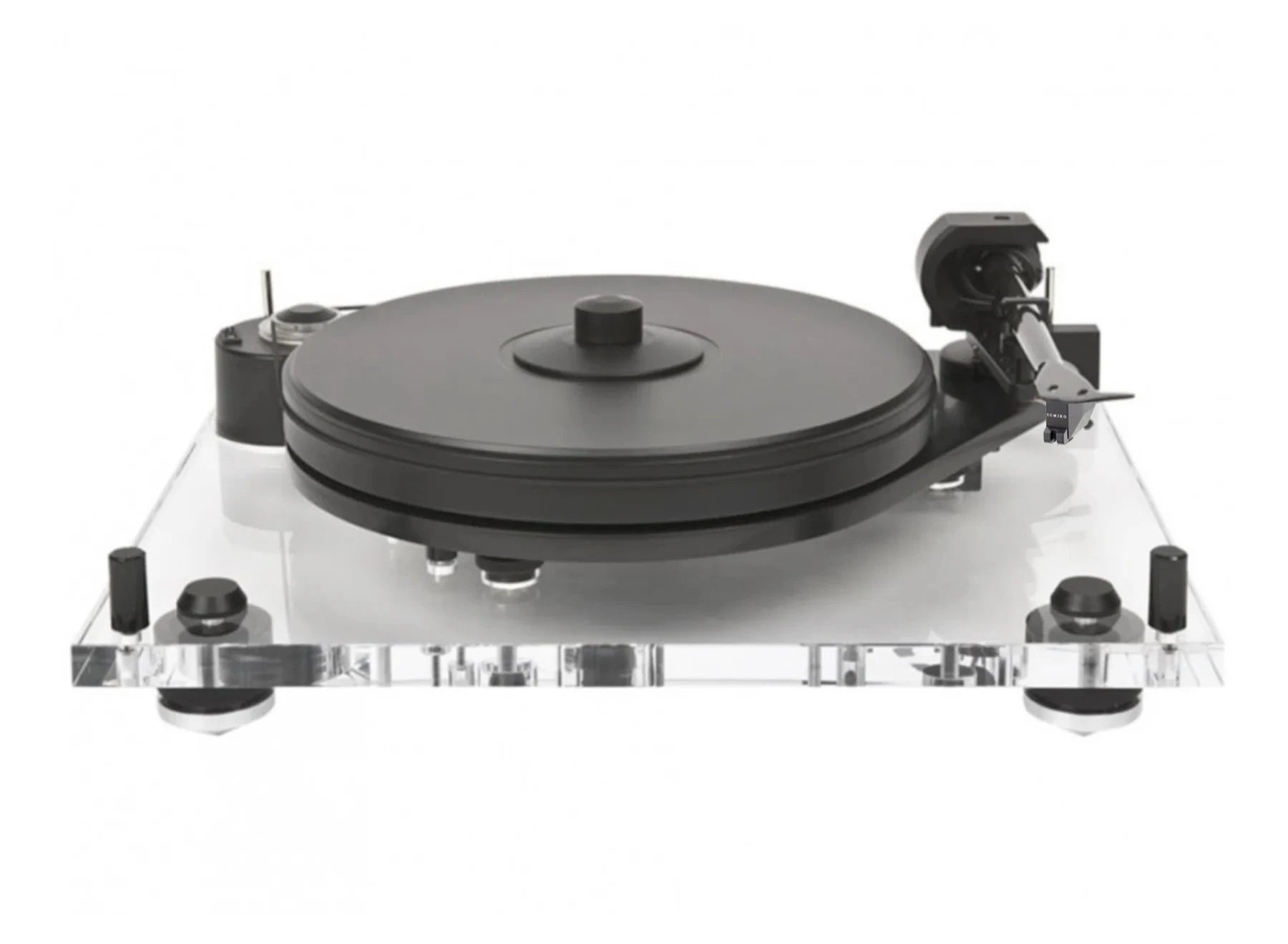

Pro-Ject 6Perspex SB Turntable



Pin It
  • The transparent acrylic plinth stands on three individually height-adjustable TPE-damped aluminium cones and carries the motor and the sub-chassis. The sub-chassis, made of Corian, rests on three magnetic fields. A magnetic sub-chassis suspension system avoids parasitic noise normally caused by conventional spring mechanism. A supplied spirit level allows easy adjustment of the sub-chassis. A quiet running AC motor unit drives the platter’s outside edge via a belt. It does incorporate an advanced DC-driven motor control, that ensures perfect speed stability and electronic speed change.

    The resonance-optimised platter is a sandwich construction utilising a fine-balanced medium density fibre platter and a 4 mm thick flat-ground layer of vinyl and a screw-down metal record clamp. It runs on an inverted bearing with stainless-steel axle carrying a ceramic ball/ plate bearing. The headshell and armtube of high-end tonearm 9cc Evolution are fashioned from a single piece of carbon-fibre. A conical armtube avoids standing wave reflections. An Inverted tonearm bearing comprises four hardened stainless tips in ABEC 7 spec ballraces.

    Supplied either with or without a premium Sumiko Amethyst Moving Magnet cartridge, hand-made in Japan by the cartridge experts at Sumiko, it can be ready to play within a few minutes of unboxing. Supplied counterweights are suitable for cartridges weighing between 5-14 g. Also supplied in the box is our Connect-IT E RCA cables, a semi-balanced, low-capacitance cable with superior shielding that’s optimized for turntable use.

  • FEATURES:
    • Acrylic Plinth
    • Sub-chassis made from Corian with magnetic suspension
    • Acoustically inert sandwich construction of platter (vinyl-coated MDF)
    • Inverted main bearing with ceramic ball/plate
    • Belt drive with AC motor using DC driven AC generator
    • Electronic speed control with 33/45 rpm switching
    • 9cc Evolution pre-mounted 9″ tonearm
    • Tonearm bearings with ABEC 7 ballraces
    • Handmade in Europe
  • SPECIFICATIONS:
    Weight 11 kg
    Dimensions 36.5 × 46 × 18.3 cm
    Cartridge

    None, Optional (Amethyst)

    • Nominal speeds: 33/45 r.p.m.
    • Speed variance: ±0,1%
    • Wow and flutter: ±0,06%
    • Signal to noise: 73dB
    • Effective tonearm mass: 8g
    • Effective tonearm length: 9″ (230mm)
    • Overhang: 18mm
    • Power consumption: 6W max / <0,3W stanby
    • Outboard power supply: 15V DC / 800 mA AC, 90-264V AC, 47 – 63Hz
