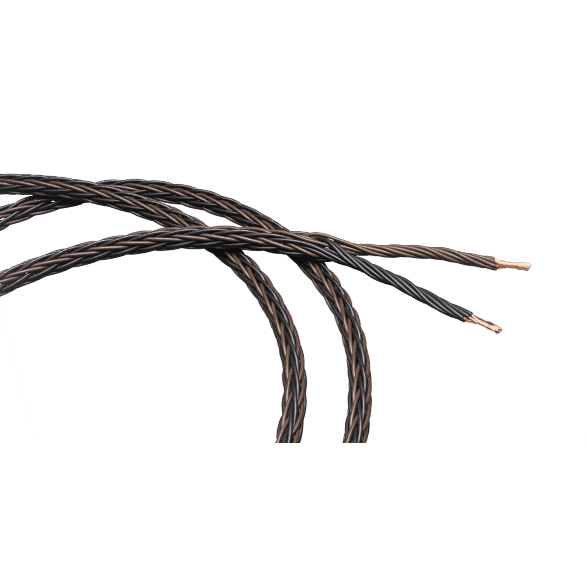

4PR’s big brother in every way. Better bass, detailed midrange and smooth upper octaves will let 8PR happily live in your system for years to come. Eight conductors per polarity yield 11 AWG / 4.17mm2 aggregate conductor size for longer runs or demanding loads.
Specifications:
- DUT: 8PR 2.5m bare wire ends.
- (Cp) parallel capacitance: 742.0 pF @ 20 kHz
- (Ls) series inductance: 0.459 µH @ 20 kHz
- (Rdc) dc loop resistance: 0.021 Ω
- (Xt) total reactance: 0.057 Ω @ 20 kHz
- Frequency response ± 0.5 dB: dc - 50 kHz
