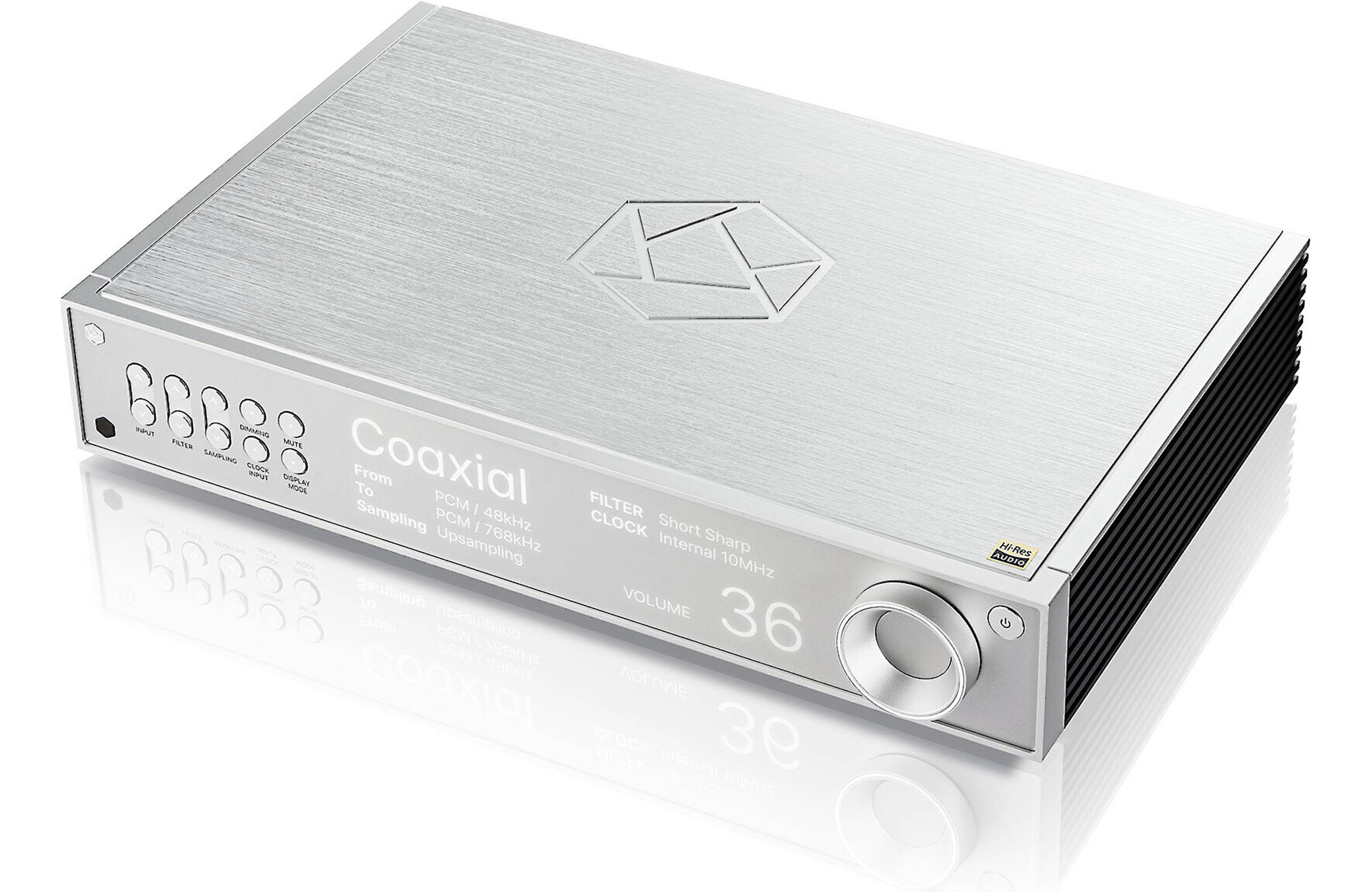

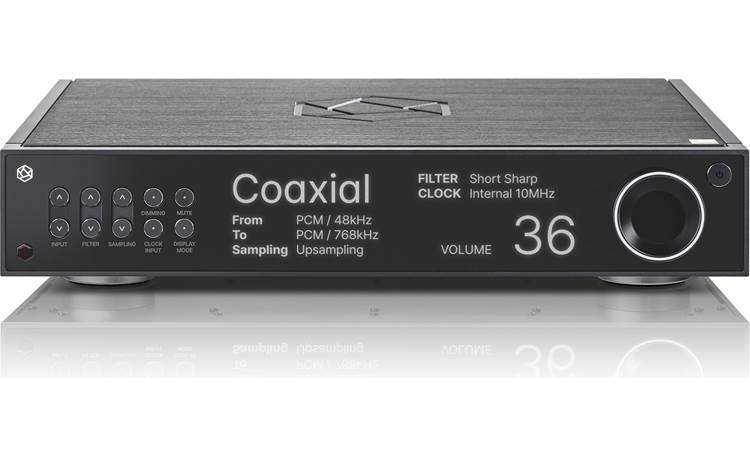

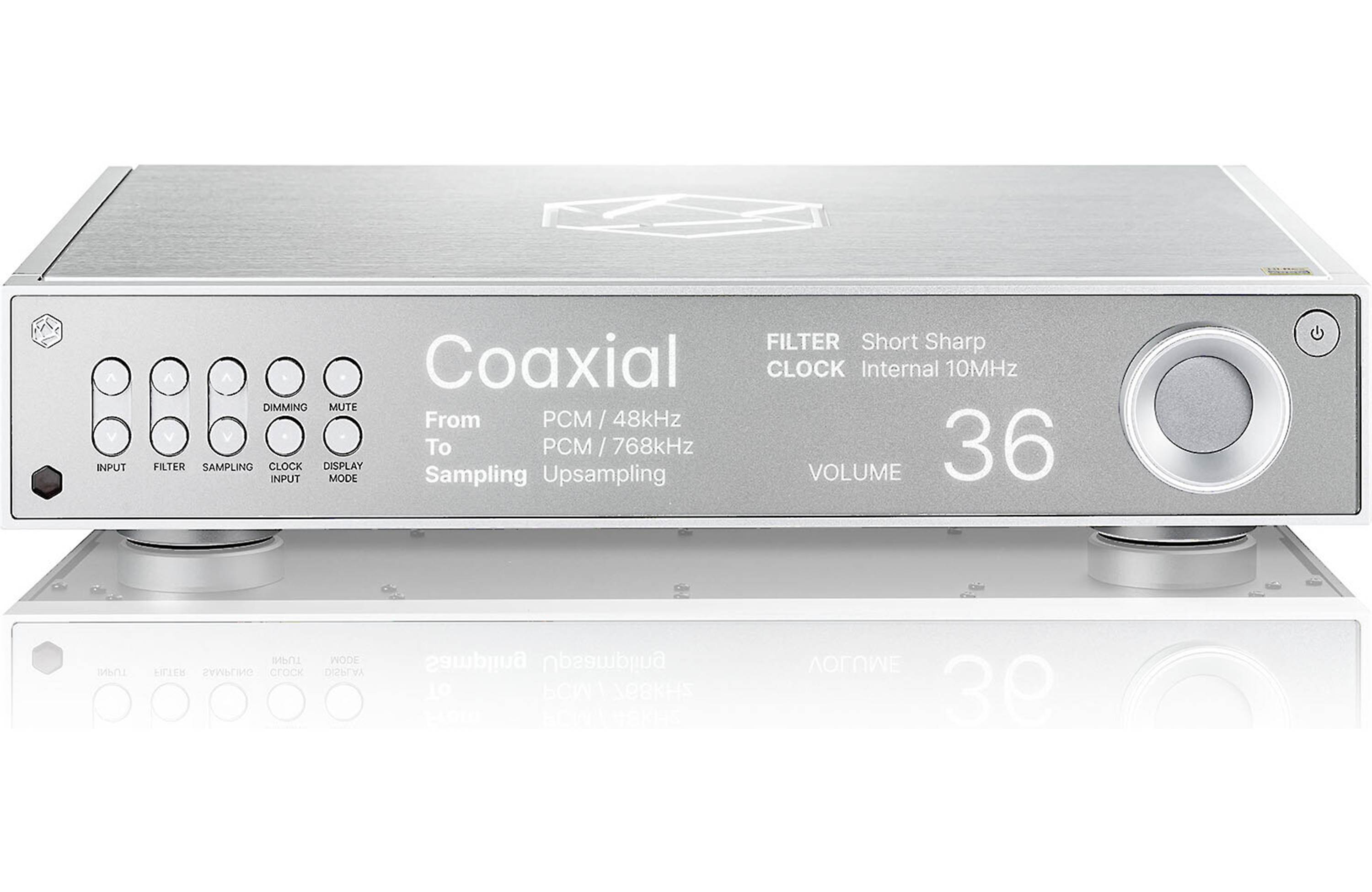

HiFi Rose RD160 Digital to Analog Converter

HiFi Rose's first standalone DAC uses Rose CIM architecture (Completely Isolated and Moduled) with AK4191 and AK4499EX chips for noise isolation and high SNR. The hidden AMOLED screen displays circuit diagrams and sound waves, and has the responsive controls that HiFi Rose is famous for.

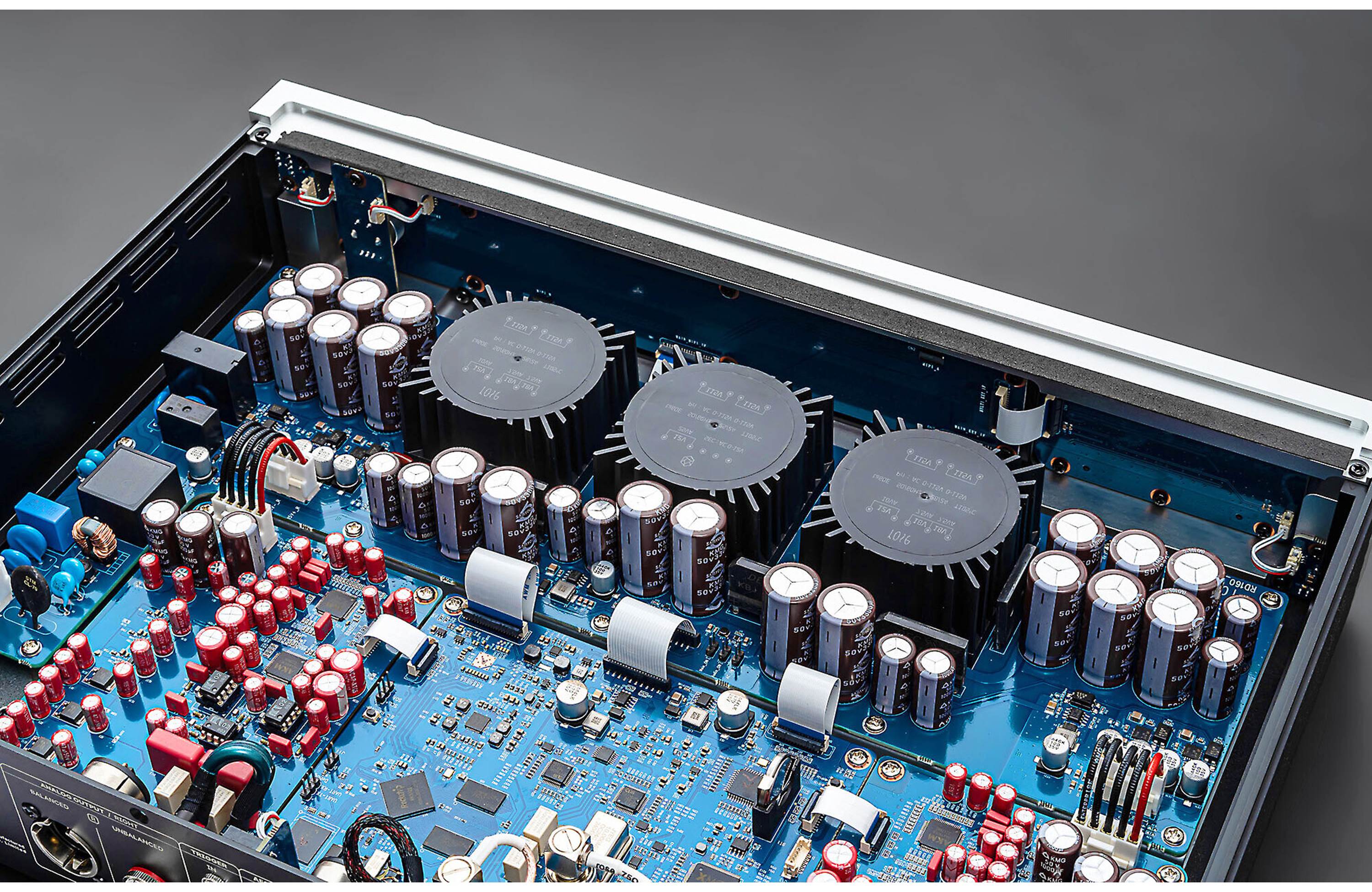

The balanced DAC modules and J-FET output stage offer outstanding dynamic range and clear stereo imaging. Independent linear power supplies minimize noise and crosstalk. A high-precision OCXO clock enhances audio accuracy by greatly reducing jitter.

Features

• Hidden screen

• ROSE CIM™ (Completely Isolated and Moduled) architecture

• Three independently customized reference linear power supply units

• ROSE NRA™ (Noise Reduction Analog) filter

• J-FET input dual op amp

• High-precision OCXO clock for long-term jitter reduction

Specifications

Display: 2 x Polycarbonate AMOLED hidden screens

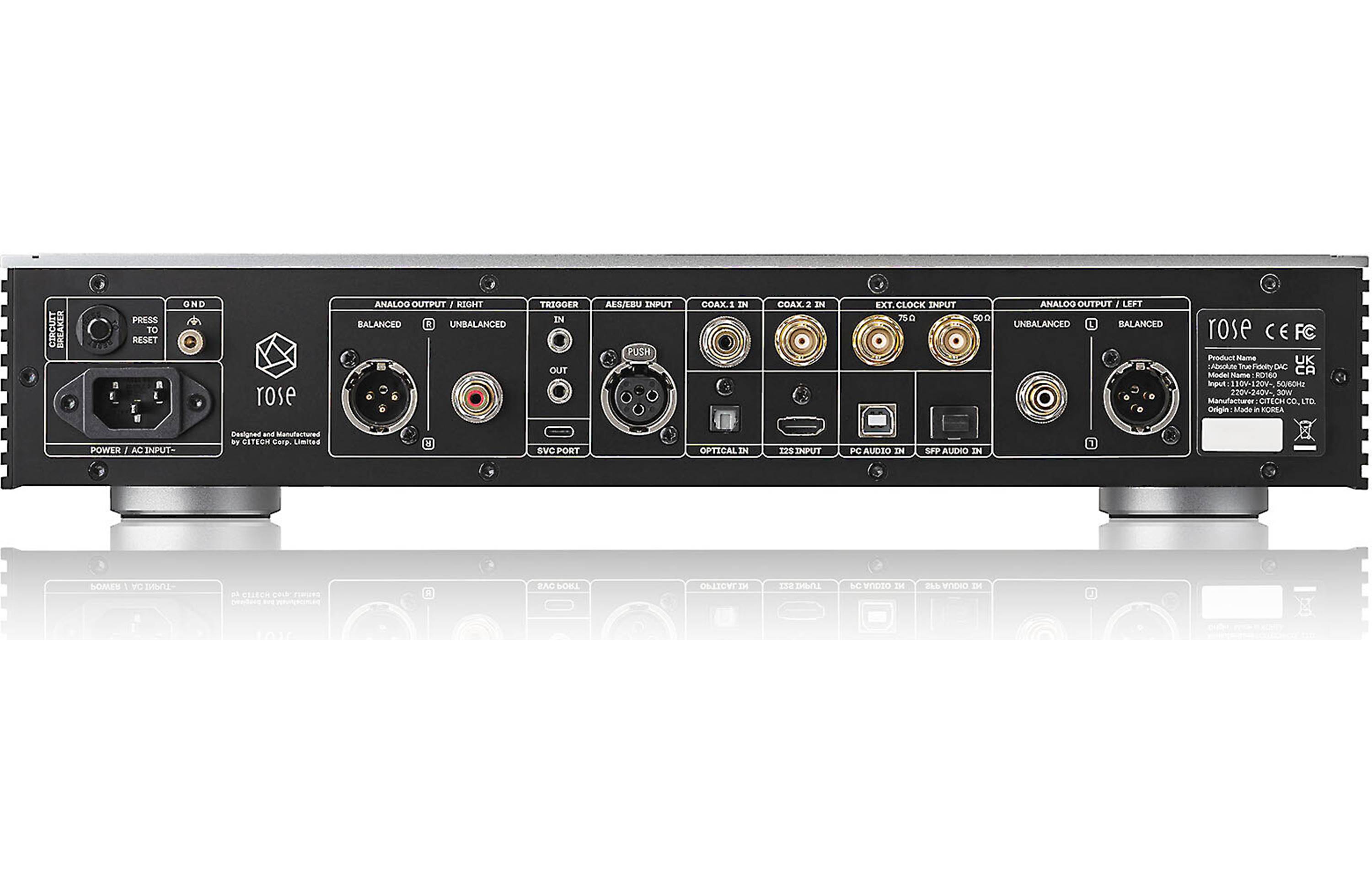

Digital Inputs: 1 x USB SFP Module, 1 x USB B 2.0, 1 x HDMI I2S, 1 x Optical, 1 x coax RCA, 1 x coax BNC, 1 x AES/EBU XLR

Analog Outputs: 2 x balanced XLR, 2 x RCA

Dimensions: 16.9” x 12.9” x 4.8”

Weight: 22 lb.
