Hana SH High Output Shibata MC Cartridge - 2.0mV



Pin It
  • LOW COST, HIGH PERFORMANCE, HIGH OUTPUT MOVING COIL CARTRIDGE WITH SHIBATA STYLUS.

    Introducing a new range of Moving Coil Cartridges from Japan, the new brand is called Hana - 華 (hana means “brilliant and gorgeous” in Japanese). Hana MC Phono Cartridges use high rigidity aluminum cantilevers, and cross-shaped armatures, providing a ‘brilliant and gorgeous’ sound at competitive price ranges for Moving Coil (MC) Cartridges of this quality.

    Manufactured by Excel Sound Corporation, a 50 year old company based in Tokyo, who started off manufacturing low cost cartridges, such as the highly regarded Excel ES70 and by 1978 was producing MC cartridges, with particular expertise in high output MC cartridges and specializing in OEM cartridge manufacture. They are perhaps seen as one of those slightly underground Japanese companies - who certainly will not reveal which cartridge brands they have manufactured for over the years. The are now in 2015 launching their own-brand range of cartridge named Hana.

    Excel Sound Corporation pride themselves on their manufacturing quality and quality controls at every stage, ensuring their handmade cartridges offer consistently perfect results.

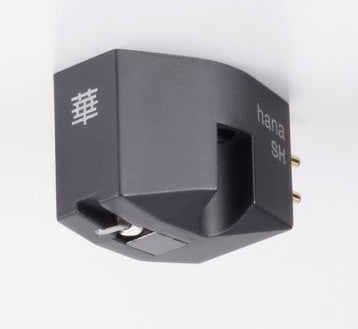

    HANA SH

    Low cost, high performance, high output Moving Coil cartridge with Shibata stylus.

    The Hana SH cartridge has a Natural Diamond Shibata diamond stylus fitted to a high rigidity aluminum cantilever with cross-shaped armature, offering super transparency and excellent track-ability. The body is manufactured from a composite low resonance plastic material in black.

    This competitively priced Low output moving coil cartridge offers great quality sound referenced against similar priced cartridges. The SH (Shibata high output) offers 2.0mv/1KHz output.

  • SPECIFICATIONS:

    Stylus Profile: Natural Diamond Shibata
    Cantilever: Aluminum
    Output Level @ 1kHz: 2.0mV
    Output Balance @ 1kHz: Less Than 1.5dB
    Vertical Tracking Force: 2 grams
    Trackability: 70 um/2 grams
    Separation @ 1kHz: 28 dB
    Frequency Response: 15-32,000 Hz
    Impedance @ 1 kHz: 130 Ohms
    Suggested Load: 47 K Ohms
    Cartridge Weight: 5 Grams
    Body Color: Black
