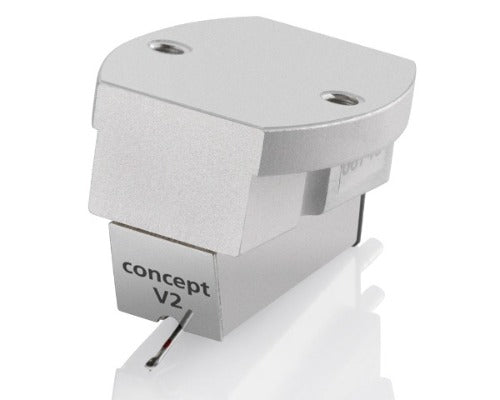

Clearaudio Concept MM V2 Phono Cartridge



Pin It

Clearaudio's V2 MM technology uses ebony as a resonanceresistant body. Other ingredients of the recipe for success are the most effective reduction of moving mass, an optimized polishing technique for the stylus and highly effective cartridge damping.

The Clearaudio V2 moving magnet cartridges are meticulously measured, analysed, and hand-selected into four performance levels. In this way Clearaudio achieves the best stereo channel matching, minimum phase error and distortion, flattest frequency response and highest dynamic range at each price point.

The cartridges produce an audiophile sound of superlative quality – spatially detailed and vividly textured, with bass that does not wallow and treble that is not harsh. The models of the Clearaudio MM V2 series provide outstanding sound quality on all current tonearms.

With the exception of the MM concept V2, which is made of aluminum, all the cartridges in this series are made with housings of hand-polished ebony – the key to record-breaking weight values.

The Concept v2 Moving Magnet cartridge is the second generation MM version providing increased clarity and dynamics. Clearaudio’s first patents and products in the 1970s were MC cartridges. They applied their expertise in phono transducer design to create a line of MM cartridges to complement their turntables and tonearms

Developed for the Concept turntable, it uses many of the advancements found in the v2 Ebony generator. The Concept v2 MM is a high-output moving magnet cartridge featuring an aluminum body and cantilever with an elliptical stylus. Due to the unique “frictionless magnetic bearing” design of the Concept tonearm, it is available factory pre-installed on the Concept turntable at a special package price.

Specifications:
TOTAL MASS 8.6g (± 0.2g)
FREQUENCY RESPONSE 20Hz - 20kHz
OUTPUT VOLTAGE (1KHZ, 5CM/S) ~ 3.3mV
CHANNEL SEPARATION (1KHZ) 20dB
CHANNEL BALANCE (1KHZ) 2dB
TRACKING ABILITY 80μm
RECOMMENDED TRACKING FORCE 2.2g ± 0.3g
COIL IMPEDANCE (1KHZ) 0.66kΩ
COIL INDUCTANCE 400mH
LOAD RESISTANCE 47kΩ
LOAD CAPACITANCE 100pF
CANTILEVER / STYLUS SHAPE Aluminium / elliptical
COMPLIANCE 15μ/mN
CARTRIDGE BODY Aluminium
MANUFACTURER’S WARRANTY 2 years
