The CD3t CD transport provides the most direct digital path to your Digital to Analog converter with a convenient slot load drive. Bel Canto’s e.One CD3t plays your CD, CDR, CDRW collection with accuracy and simplicity. Connect to your DAC Preamp using AES/EBU XLR, SPDIF BNC (RCA adaptor included) for an accurate data transfer of 44.1kHz/ 16bit.
Please respect your local Bel Canto dealer
-
- Front Panel Control
- Easy to Read 4 Character Display

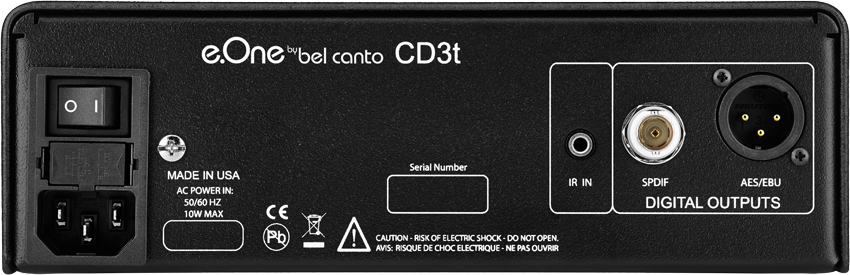

- 2 Digital Outputs: SPDIF and AES/EBU
- Remote Control

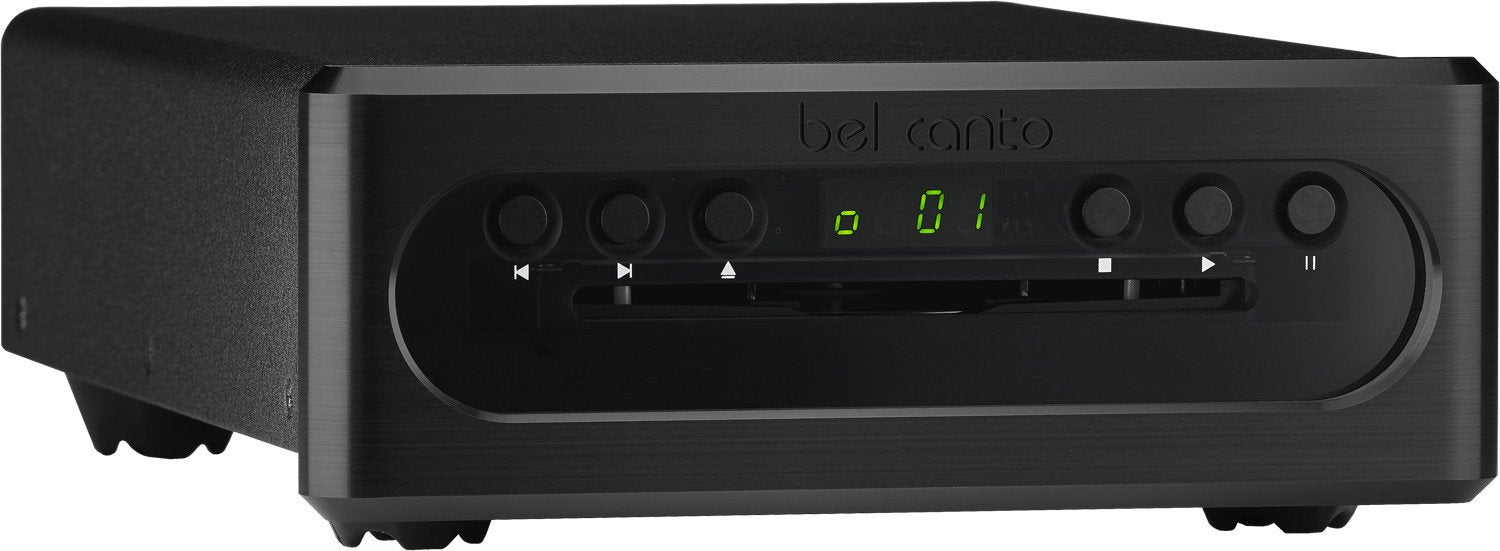

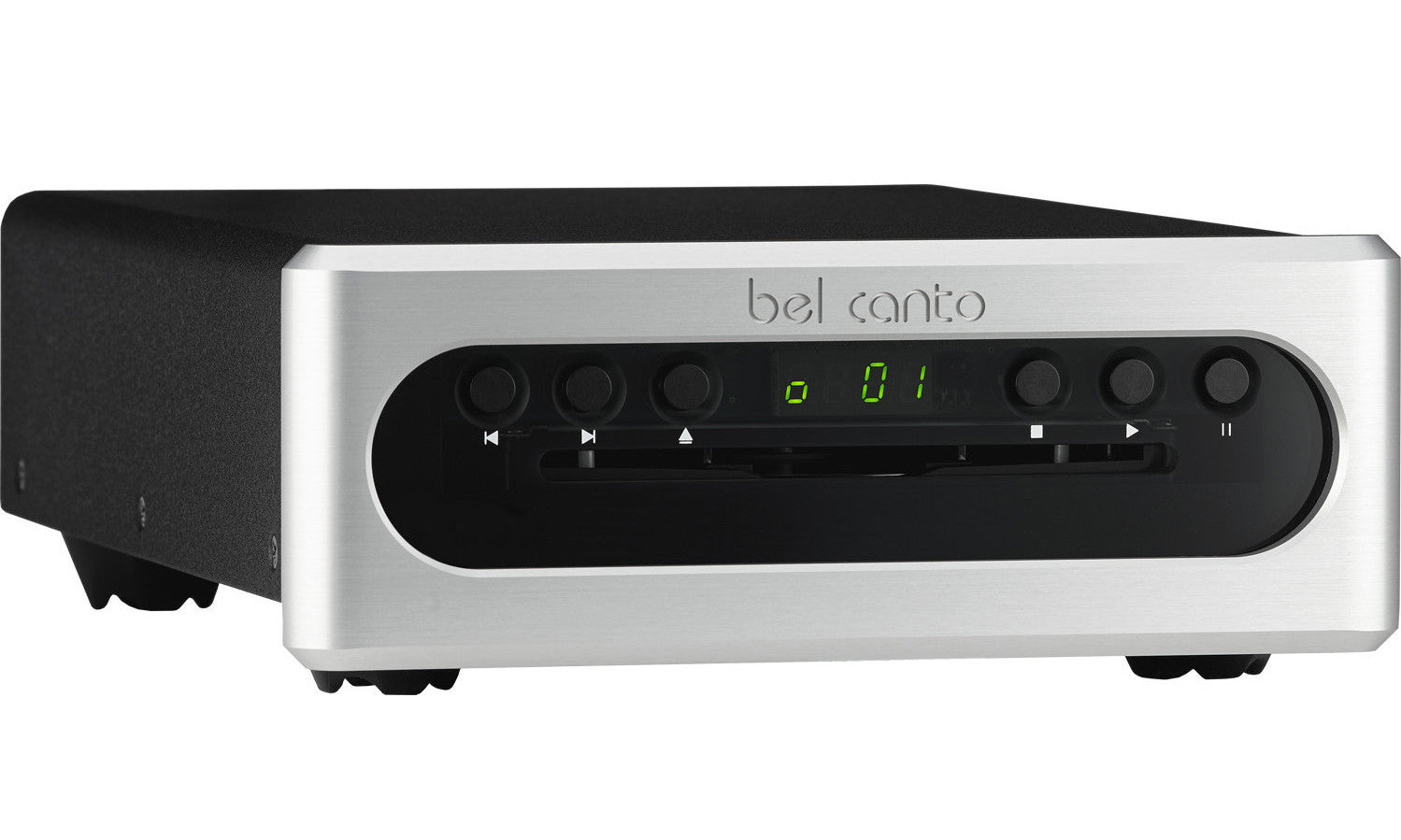

- Available in Silver or Black Faceplate
-
Disc Compatibility: CD-DA (Red Book IEC908), CD-R and CD-RW discs DIGITAL OUTPUTS:
Maximum Data Rate/Bit Depth: 44.1kHz/16bit Digital Output types: AES/EBU, XLR, SPDIF AES/EBU Digital Output Level: 3V p-p, 110 ohms, 44.1K samples/second SPDIF Digital Output Level: 0.6V p-p, 75 ohms, 44.1K samples/second Additive jitter: < 100 pS RMS GENERAL:
StreamUnlimited Slot-load mechanism Power Draw: 4W Sleep Mode power: <0.5W Power Requirement: Internally set for 100, 120, 220, or 240VAC; 50 or 60 Hz Dimensions: 8.5” W x 12.5” D x 3.5” H (216 mm x 318 mm x 88 mm) Weight: 12lbs. (8.2 kg)
