Leak 130 Stereo Integrated Amplifier - ONE WEEK OLD



Pin It

Next → ← Previous

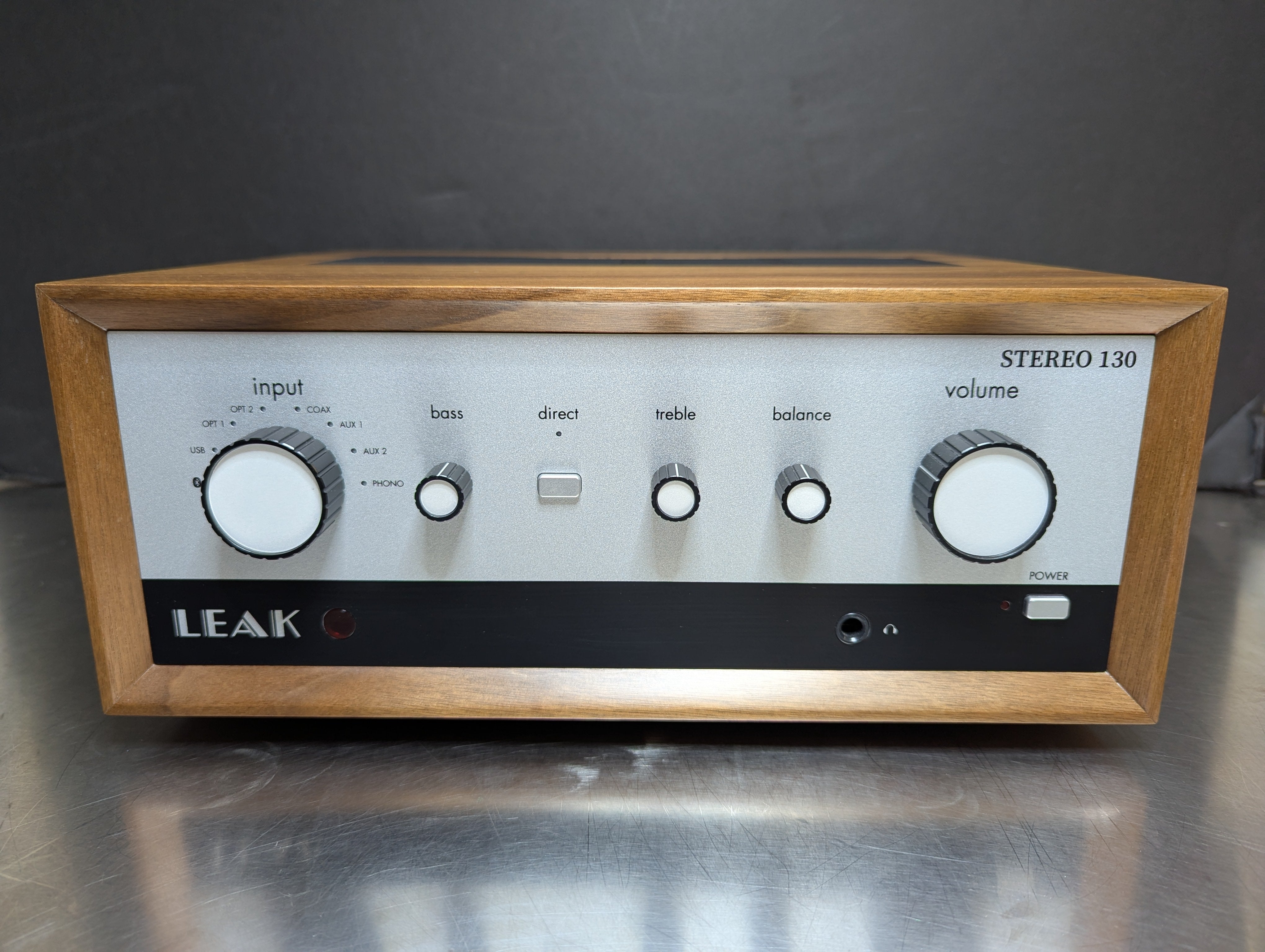

  • PERFECT - ONE WEEK OLD
  • LOOKS AND WORKS PERFECTLY.

    In 1979, LEAK disappeared from the production lines. The brand was pushed into obscurity to become a mere memory and ‘cherished’ brand of yesteryear.

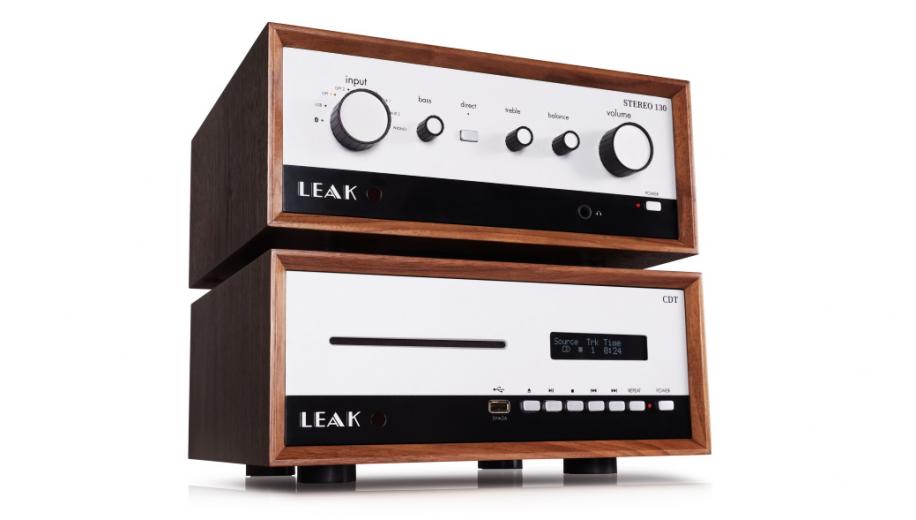

    After over 40 years LEAK returns with a fresh take on traditional British stereo design with 2 unique pieces, the Stereo 130 amplifier & CDT transport.

    TURNTABLE READY.

    Traditional audiophiles will recognize the assured quality in the high-quality, low-noise turntable input of the LEAK STEREO 130. Optimised for moving magnet cartridges, the JFET-based circuit offers precise RIAA equalization in accordance with de facto industry standards for vinyl record playback.

    HEADPHONE FRIENDLY.

    The LEAK STEREO 130 uses a dedicated amplifier circuit with current-feedback technology for the headphones output. Equal in performance to standalone headphone amplifiers, beyond the price-class of this complete system, the design offers high-speed output signal transition thanks to a high slew rate. The result is a dynamic, detailed and engaging performance with all manner of headphone types.

    CONVERSION WITHOUT COMPROMISE.

    Utilising the acclaimed ES9018 Sabre32 Reference chip with ESS Technology’s 32-bit HyperStream architecture and Time Domain Jitter Eliminator, the LEAK STEREO 130 offers ultra-low noise, high dynamic range of digital audio files with a sampling rate of up to 284kHz (PCM) and DSD256.

    DIRECT & TONE CONTROL.

    The LEAK STEREO 130 incorporates LEAK’s signature DIRECT switch to bypass steps in the analogue circuitry, for the purest signal path. In addition, the signature BASS and TREBLE tone controls allow for customization of the amplifier output signal to suit your music medium and matched electronics or loudspeakers.

  • SPECIFICATIONS:

    D/A Converter: ESS Sabre32 Reference ES9018K2M
    Input Sampling Rates: Optical, Coaxial: 44.1kHz~192kHz; USB: 44.1kHz~384kHz (PCM)/DSD64, DSD128, DSD256
    Rated Output Power: 2 x 45W (8ohm)/2x65W (4ohm)
    Total Harmonic Distortion: < 0.005% (30W, 8ohm)
    Frequency Response: 20Hz-20kHz (+/-0.5dB)
    Input Sensitivity: 480mV (RCA AUX IN); 4.1mV (phono MM)
    Input Impedance: 10Kohm (AUX) ; 47Kohm //100pF (phono MM)
    Signal to Noise Ratio (S/N): ≥108dB (A-weighted, ref.45W)
    Pre Output Level: 4
    Pre Output Total Harmonic Distortion (THD): < 0.003%
    Pre Output Signal to Noise (S/N): >110dB (A-weighted)
    Bluetooth Version:
       Profile: A2DP
       Codec: aptX (priority), SBC

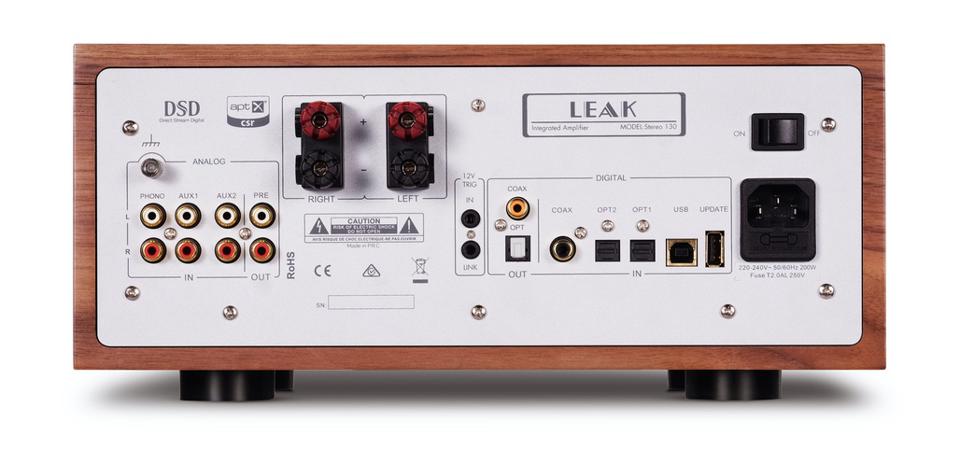

    USB Input: 1 x USB (B-type)
    Digital Audio Inputs: 2 x Optical TOSlink, 1 x RCA COAX
    Digital Audio Outputs: 1 x Optical TOSlink, 1 x RCA COAX
    Analog Inputs: 2 x RCA (AUX1, AUX2), 1 x RCA (phono MM)
    Analog Output: 1 x RCA (PRE OUT)
    Power Requirement: 100-120V ~ 50/60Hz
    Dimensions (WHD): 12.8" x 5.7" x 10.9"
    Weight: 18.3 lbs.
