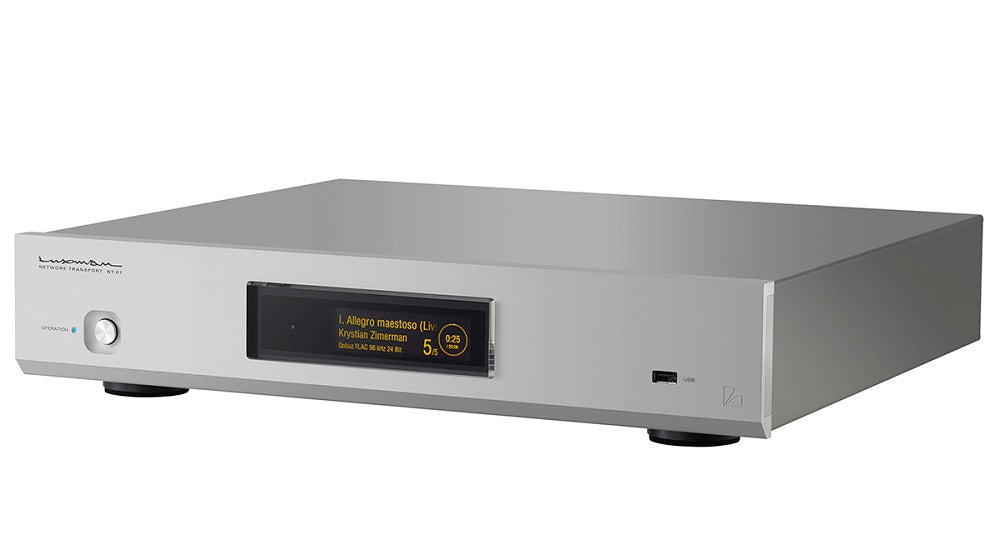

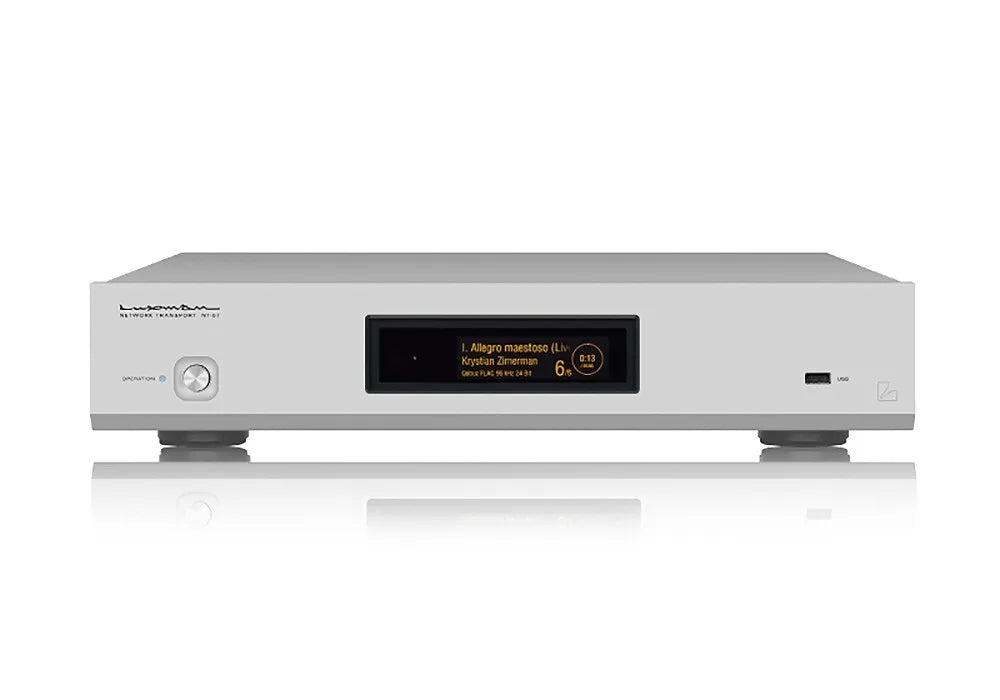

The NT-07 is LUXMAN's first network transport product that enables satisfying playback of various digital sound sources transmitted over networks in a sophisticated operating environment.
Features:
- Network Transport
- Supports various music streaming services (Qobuz, TIDAL, Spotify, Tuneln)
- "LUXMAN Stream", a dedicated control application for this unit, provides sophisticated operability, allowing users to select music sources, create playlists, and configure various settings for this unit.
- Core decoding of MQA format sound sources supported (ON/OFF available)
- PCM/DSD sampling function that can be set for each playback format.
- Planned be compatible as an output device for the popular Roon comprehensive music playback software
The NT-07 is equipped with a powerful audio signal processing module based on the latest generation of application processors, a thorough, audio focused noise suppression system, a dedicated control app compatible with smartphones and tablets, infrared remote control and a slender, full-size chassis that can easily integrate into any existing system.
This upgrade can realize a whole new world of listening enjoyment, configurable to suit the listener's tastes.
Sound sources can be selected from files stored on UPnP (Open Home) compatible network storage (NAS) or the latest music streaming service (Qobuz, Tidal, Spotify), etc. The system supports sampling frequencies of up to 768kHz/32bit PCM and 22.4 MHz DSD.
In addition to the network, HDMI input/output is also available. The HDMI system (ARC) also supports the input of video sources from TV, using the ARC function, as well as through-output to the TV/display, enabling audio signals from various video sources to be reproduced in a 2-channel audio environment.

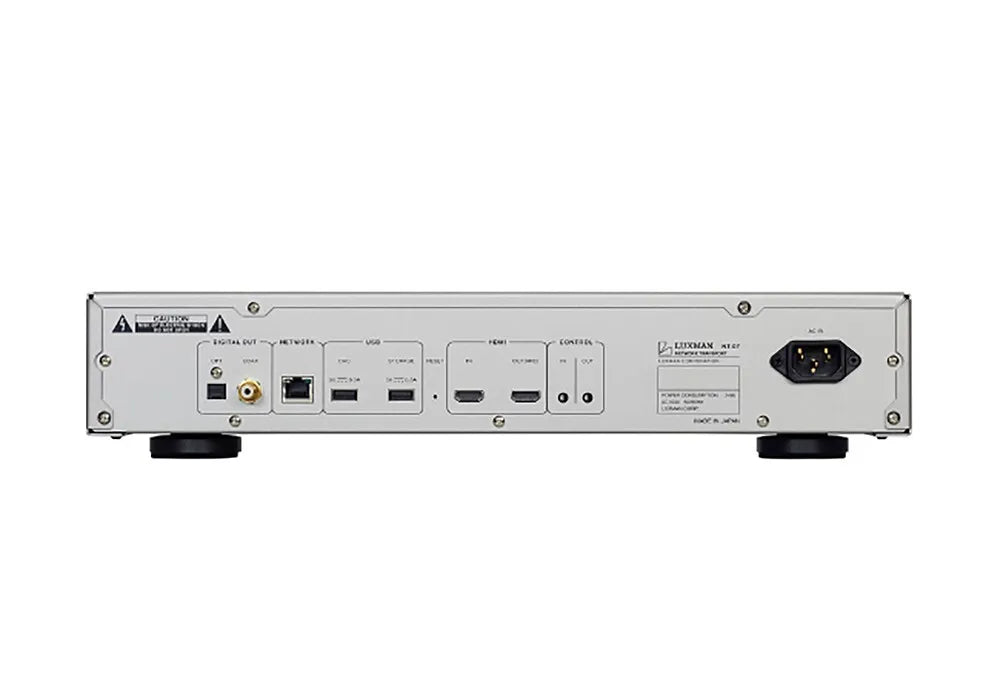

- Digital input - Network : 1000 Base-T (gigabit · ethernet); HDMI : PCM 2 channel, 4K pass-through ARC (Audio Return Channel) supported
- Digital output - USB (USB2.0), OPT, COAX; HDMI : PCM 2 channel, 4K pass-through ARC (Audio Return Channel) supported
- Storage connection - USB x 2 terminals (USB2.0, single partition, FAT32, exFAT, NTFS)
- Supported sampling frequencies - USB : PCM 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz, 705.6 kHz, 768 kHz (16, 24, 32-bit); DSD : 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.5 MHz (1-bit); COAX / OPT / HDMI (ARC) : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (16, 24-bit)
- Corresponding format formats - WAV, AIFF, FLAC, ALAC, MQA, MP3, AAC, DSD (DSF, DFF)
- Streaming protocols - UPnP (OpenHome), TIDAL Connect, Spotify Connect, Roon Ready (soon to be available)
- Power supply - 230 V～(50 Hz) / 115 V～ (60 Hz)
- Power consumption - 27 W (HDMI in/output when connected to USB storage)
- 5.9 W (HDMI in/output when USB storage is disconnected)
- Dimensions - 440(W) x 92(H) x 398(D) mm (front side display of 3 mm and rear side terminal of 13 mm included in depth)
- Net weight - 10.3 kg (main unit)

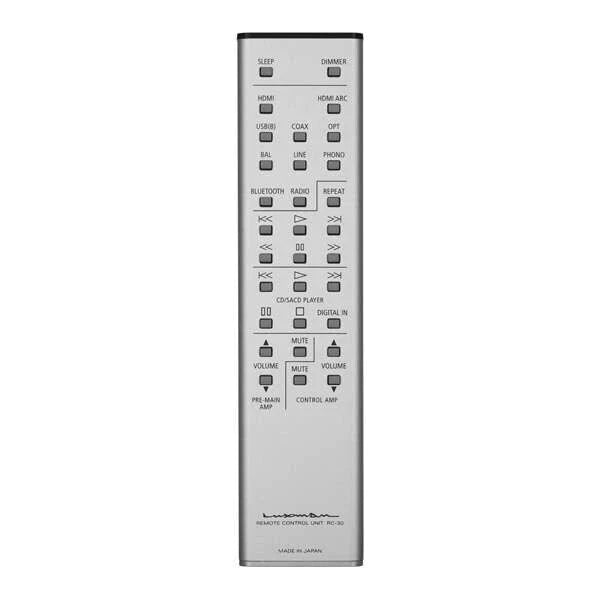

- Accessories - Remote control (RC-30), Power cable
