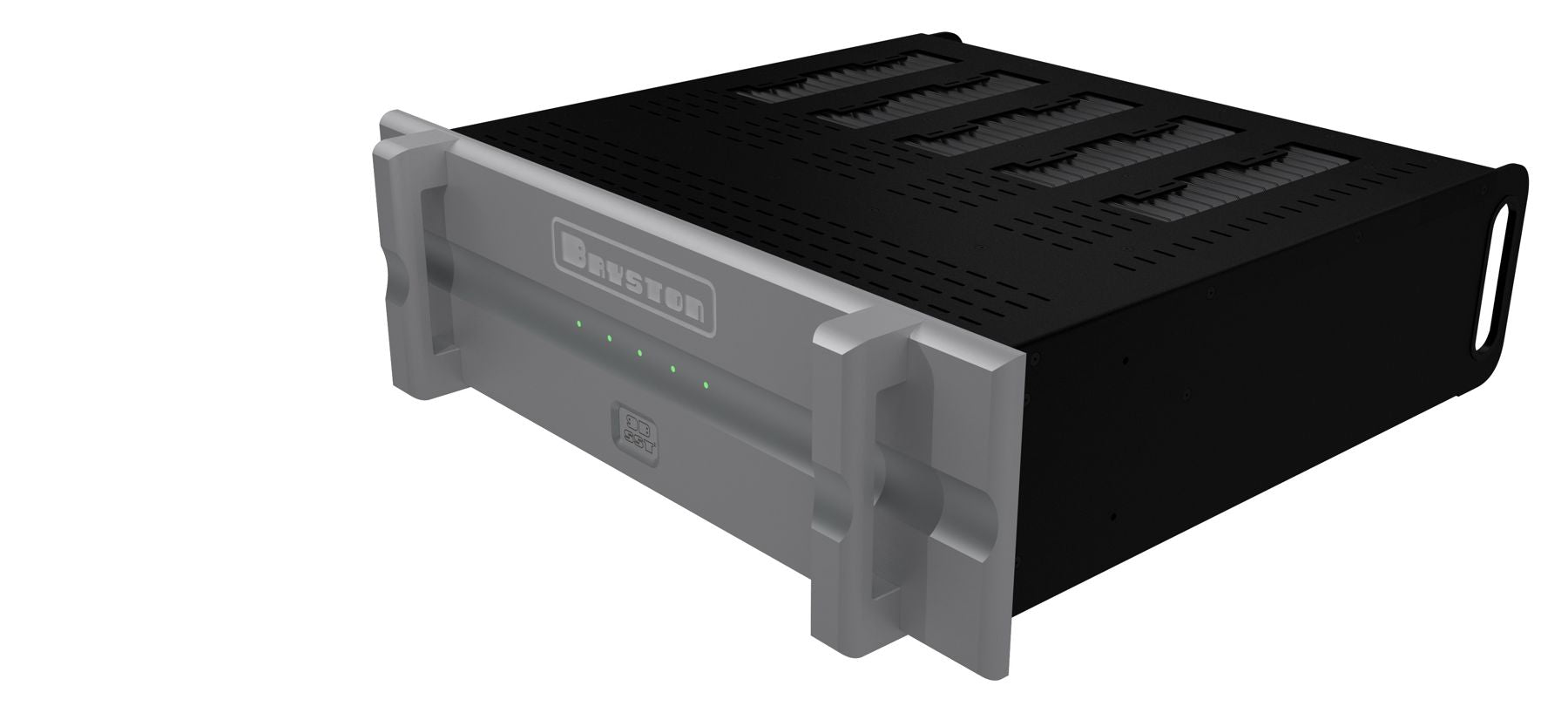

The Bryston 9BSST3 is a five channel amplifier designed with home theatre installation in mind. Each channel is built on its own removable assembly, which means that any channel can be swapped if necessary and may be configured with fewer channels if so required.

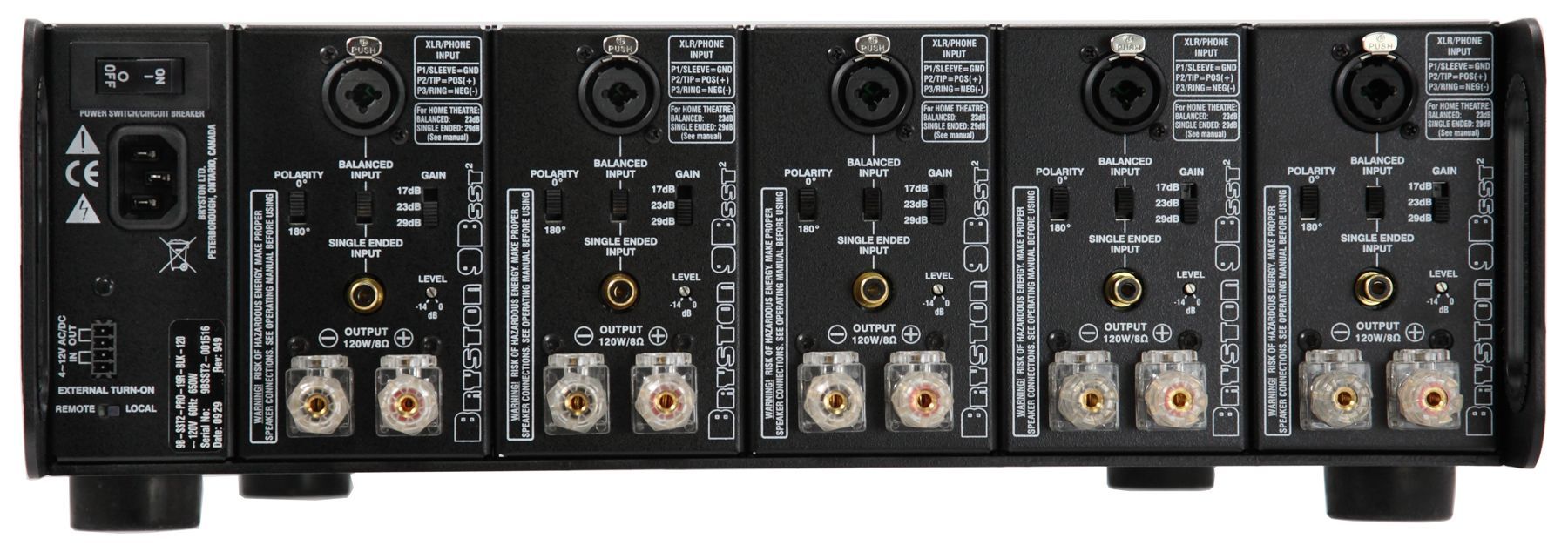

The Bryston 9B SST3 is a modular, multi-channel, single-chassis power amplifier delivering 200 Watts per channel into 8 Ohms. The 9B, however, is unique among SST3 amps – although it also employs modular construction in which each channel is self-contained with audio circuitry, connectors, and an independent power supply, the 9B channel module differs in that it is built on its own removable assembly. This means that not only may any channel be easily swapped in the unlikely event of failure, but also that the 9B may be configured with fewer channels if an application so requires.
Indeed, the 9B SST3 may be ordered in a 3, 4 or 5 channel version. Modular channels are available separately for later expansion. The Bryston 9BSST3 is a five channel amplifier designed with home theatre installation in mind. Each channel is built on its own removable assembly, which means that any channel can be swapped if necessary and may be configured with fewer channels if so required.
- Balanced and unbalanced inputs
- Selectable gain at 23 or 29dB
- No fans or other moving parts
- Convection cooled and housed in a fully aluminum chassis
Options:
- Available with silver or black faceplate
- 17” (without handles) or 19” (with handles) faceplate available (non-rack mountable)
- Rack mountable Pro Edition available in black ( SST3 Pro)
Specifications:
- Power Capabilities: 200W into 8 Ohms (300W into 4 Ohms)
- Gain/Sensitivity: 29dB (1 .1Vin = 120W @ 8 Ohms)
- Input Impedance: 30K ohms (±5%) single ended - 20K ohms (±5%) balanced (each leg)
- Dimensions:
- 19" Rack mount version: 48 .3 x 13 .3 x 48 .5cm; (19"w x 5 .25"h x 19 .1"d) with handles
- 17” version w/o handles: 43 .2 x 13 .3 x 44 .4cm; (17"w x 5 .25"h x 17 .5"d) - Weight: 34 .5kg (76 lbs)
