BEL CANTO E1X STEREO AMPLIFIER
The new e1X line incorporates many ground-breaking designs from the Black series. Each e1X component is designed with great attention to detail, focusing on our unique power amplifier technologies that optimize and maintain the purest signal quality. Built in a constrained layer damped chassis with high-grade aluminium defines the simple and elegant look.
High performance Stereo Amplifier rated conservatively at 200/400 Watts. Our custom, discrete Single Stage High-current Amplifier input and gain stages bring the magic to this amplifier.
Features include gain control switch to match system gain to your speakers. Advanced power filtration enables over 1200 watts of clean power delivery to the amplifiers. Standby control from front panel or 5/12V trigger for complete system.
-
FEATURES:
- Power Output 1% THD per Channel : 400W 4 ohms, 200W 8 ohms
- Minimum Load : 2 ohms
- Peak Output Current : 27 amperes
- Frequency Response : +/-3 dB 0Hz-50KHz, all loads
- THD+N : 0.002% 1W, 1KHz, 4 ohms
- Output noise : 35uVRMS A-weighted 10Hz-20KHz
- Voltage gain : 27dB (internal switches select for 33dB
- Damping factor : >500
- Output Impedance at 100Hz : <16 milliohms
- Dynamic Range : 126dB
- Input Voltage for Max Output : 2.3Vrms at 27dB gain

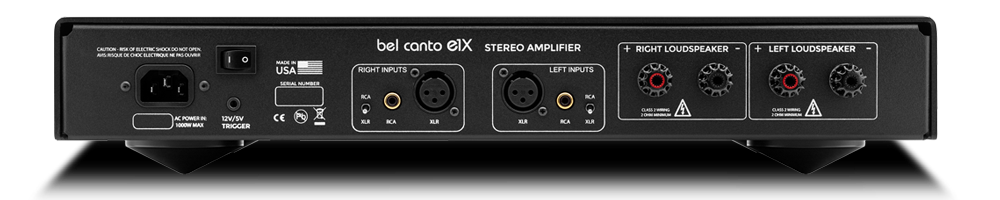

- Input connections : Single-ended RCA or balanced XLR
- RCA input impedance : 10Kohms
- Balanced input impedance : 20Kohms
- Output connections : 2 sets WBT Nextgen 5-way binding posts
